Woodhead 69W81

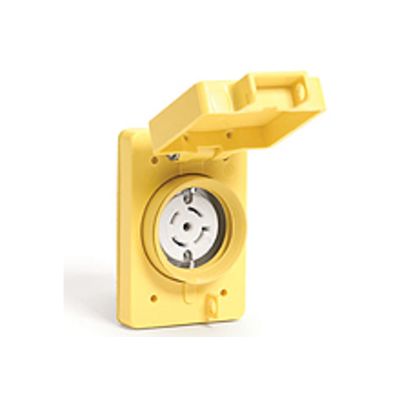

Woodhead reg; Watertite reg; 69W81 130147 3-Phase Female Single Receptacle With Locking Blade and Single Flip Coverplate, 208 VAC, 30 A, 4 Poles, 5 Wires, Yellow
Plugs Connectors
7161954
69W81
Woodhead
$0.00
/ ea
Woodhead® Watertite® Receptacle, 3-Phase Female Single, Series: 130147, 208 VAC, 30 A, 4 Pole, 5 Wires, L21-30 NEMA Rating, IP67 Enclosure, -40 to 75 deg C, Screw Terminal, Yellow
- Features
- Multiple seal plug or connector interface keep out contaminant-resistant vapor and water from high pressure washdown up to 1000 psi
- Color coded 1/4 in terminal screw preset in open position, ready to wire
- Wire screw terminal are tri-drive to be used with straight blade, Phillips® and square drive screw driver
- Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strand are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Three piece strain relief seal cable without damaging the cable
