Woodhead 4212

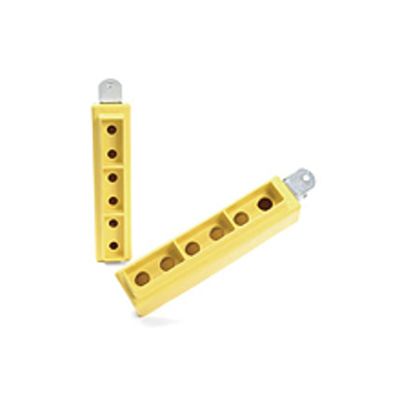

Woodhead reg; Super-Safeway trade; 4212 130126 Push Button Pendant Enclosure, 30-1/2 in L x 3-1/2 in W, Rubber
Enclosure Pushbutton
7375356
4212
Woodhead
$0.00
/ ea
Woodhead® Super-Safeway™ Push Button Pendant Enclosure, Series: 130126, 30-1/2 in Length, 3-1/2 in Width, 22 mm Capacity, Pendant Mounting, Rubber
- Features
- Unique, industry-leading, NEO-TEX® paracril OZO rubber pendant enclosures yield the best performance for abrasion, chemical exposure and temperature extremes
- Accepts industry standard 30 mm and 22 mm pushbutton and pilot devices
- Protective ribs provide recess for pushbutton operators and pilot lights preventing unintended operation and device protection
- Metal suspension bracket allows for messenger cable to support pendant and provide longer operational life of the system
- Max-Loc® strain relief included as standard to provide maximum cable pull-out resistance
- Internal ground strap common to all pilot devices and cable entry provides for safe electrical operation
- Steel zinc-plated messenger cable bracket and cover screws
- Max-Loc® nylon strain relief with rubber grommet cable connection
- Stainless steel cover to housing screws
- Brass ground strip
- 5/8 to 1 in cable diameter
- F4 body, 1 in cable grip
- Metal cable grip nut
- 12-buttons
- Dimensional data for enclosure with 12 openings
