Wattstopper PW-100-G

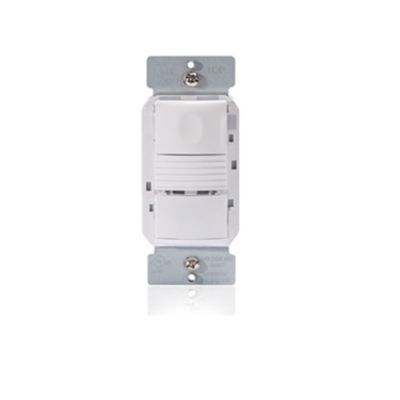

WattStopper PW-100-G 1-Relay Wall Switch Occupancy Sensor, 120/230/277 VAC, Passive Infrared Sensor, 525 sq-ft Coverage, 180 deg Viewing, Strap Mount
Occupancy and Motion Sensors
6864407
PW-100-G
Wattstopper
$0.00
/ ea
The PW-100 passive infrared (PIR) wall switch sensor turns lights ON and OFF based on occupancy. It is characterized by high sensitivity to small and large movements, appealing aesthetics, and a variety of features. (grey)
- Features
- Time delay adjustments - 5 to 30 min at minimum, 3 minimum if no activity after 30 sec at walk through mode, 5 sec for 10 min with DIP switch setting at test mode
- High or low (dip switch) PIR adjustment
- 0 to 800 W tungsten or ballast, 1/6 hp motor load limit for each relay at 120 VAC and 0 to 1200 W ballast load limit for each relay at 277 VAC
- Detection signature analysis eliminates false triggers and provides immunity to RFI and EMI
- Zero crossing for long relay life
- Vandal-resistant lens combines precise coverage with durability
- Choice of manual-on or auto-on operation
- Selectable walk thorough mode turns lights off 3 min after the room is initially occupied if no motion is detected after the first 30 s
- Test mode allows quick and easy adjustments
- Selectable audible alert for impending shutoff
- In automatic mode, sensor returns automatically to auto On after lights are turned Off manually, ideal for presentations
- Four occupancy logic options give users the ability to customize control to meet application needs
- Optional light level sensing with simple setup
- Service mode allows sensor to operate as a service switch in the unlikely event of a failure
- Sensor coverage tested to NEMA guide publication WD 7 to 2000
- Compatible with decorator wallplates
- Magnetic or electronic ballast load type
- One relay and one On/Off button
- Wall switch sensor turns lights off and on based on occupancy
- It is characterized by high sensitivity to small and large movements
