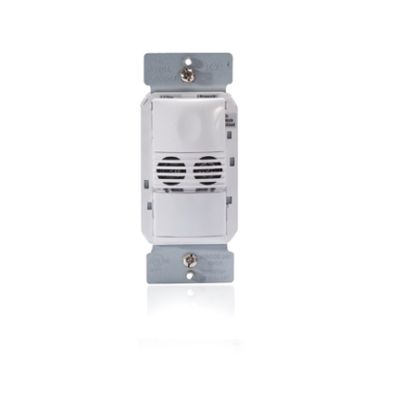

Wattstopper DW-100-LA

WattStopper DW-100-LA DW Series Dual Technology Single Relay Wall Switch Occupancy Sensor, 120/230/277 VAC, Passive Infrared/Ultrasonic Sensor, 525 sq-ft Coverage, 180 deg Viewing, Surface Mount
Occupancy and Motion Sensors
6906110 DW-100-LA
Wattstopper
$0.00 / ea

Wattstopper DW-100-LA
The DW-100 dual technology wall switch sensor combines the benefits of passive infrared (PIR ) and ultrasonic technologies, and can turn lights OFF and ON based on occupancy. It is characterized by high sensitivity to small and large movements, appealing aesthetics, and a variety of features. (light almond)
QTY
Add to Wishlist
  • Features
  • Time delay adjustments - 5 to 30 min at minimum, 3 minimum if no activity after 30 s at walk through mode, 5 s for 10 min with dip switch setting at test mode
  • High or low (dip switch) PIR adjustment and minimum to maximum (trimpot), OFF ultrasonic adjustment
  • 0 to 800 W tungsten or ballast, 1/6 hp motor load limit for each relay at 120 VAC and 0 to 1200 W ballast load limit for each relay at 277 VAC
  • Complies with 2011 NEC requirements
  • Detection signature analysis eliminates false triggers and provides immunity to RFI and EMI
  • Zero crossing for long relay life
  • Vandal-resistant lens combines precise coverage with durability
  • Choice of manual on or auto-ON operation
  • Selectable walk through mode turns lights off 3 min after the room is initially occupied if no motion is detected after the first 30 s
  • Test mode allows quick and easy adjustments
  • Selectable audible alert for impending shutoff
  • In automatic mode, sensor returns automatically to auto-ON after lights are turned OFF manually, ideal for presentations
  • Four occupancy logic options give users the ability to customize control to meet application needs
  • Optional light level sensing with simple setup
  • Service mode allows sensor to operate as a service switch in the unlikely event of a failure
  • Sensor coverage tested to NEMA guide publication WD 7-2000
  • Compatible with decorator wallplates
  • One relay and one on/OFF button
  • Magnetic or electronic ballast load type
  • Can turn lights off/on based on occupancy
