Signify 71A6051001D
Advance 71A6051001D Magnetic HID Ballast, HID Metal Halide Lamp, 400 W Lamp, 120/208/240/277/480 VAC, Probe, 1 Ballast Factor
Ballasts, Starters and LED Drivers
2701622
71A6051001D
Signify
$0.00
/ ea
Advance HID Ballast, Magnetic, HID Metal Halide Lamp, 400 W Lamp, 455 W Wattage, 120/208/240/277/480 VAC, 4.13/2.29/2.2/1.72/0.99 A, 60 Hz Frequency, Probe Start, -20 deg F Minimum Starting, Power Factor: 0.9, No Dimmable, 1 Lamp, Thermal Protection: Class P, 71A6051 Lamp Base, Ballast Factor: 1, ANSI M59 Ballast Grade, 4.75 in L x 4.45 in W x 4.25 in H Dimensions
- Features
- The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire
- The core and coil also forms the nucleus of Philips Advance five other ballast configurations
- 24 Mfd capacitor
- 2.86/1.45/1.29/1.1/0.62 A input current (open circuit), 3.51/2.0/1.72/1.49/0.86 A input current (starting), 2.7 to 4.05/1.56 to 2.34/1.29 to 1.92/1.17 to 1.76/0.68 to 1.02 A input current (short circuit), 4.13/2.29/2.2/1.72/0.99 A input current (nominal)
- 4-1/4 x 4-3/4 in (2 coil) core
- 1.75 in Dia x 4.8 in H oval capacitor

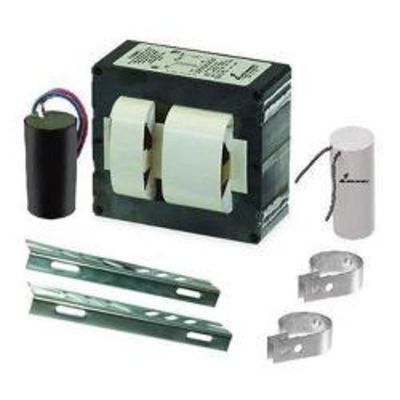

- Ballast replacement kit with dry film capacitor
- UL insulation class H of 180 deg C
