Panduit PV18-14FB-3K

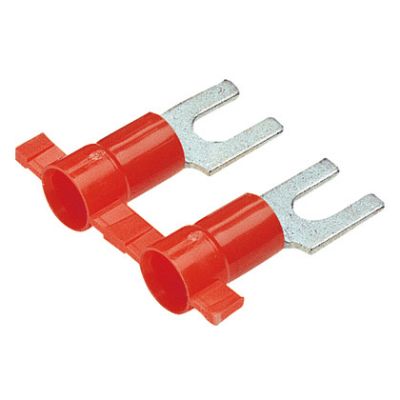

Panduit Pan-Term Reel Smart PV18-14FB-3K Insulated Fork Terminal, #18 Conductor, 1.03 in L, Butted Seam Barrel, Copper, Red
Ring Terminals
6942214
PV18-14FB-3K
Panduit
$0.00
/ ea
Panduit Pan-Term Reel Smart Fork Terminal, Insulated, Series: PV-FB, Copper/Solid/Stranded Conductor, #18 Conductor, M6 Stud, 1.03 in Length, Butted Seam Barrel, Fork Tongue, 0.44 in W x 0.03 in T Tongue, 600 V, Specifications: 1/4 in Wire Strip, 0.15 in Dia Maximum Insulation, 0.33 in Clearance, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Red
- Features
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Plastic insulation crimp
- Funnel entry barrel configuration
- CA-800EZ, CA9 recommended tools
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Vinyl insulated
