Panduit LCC500-38DW-6

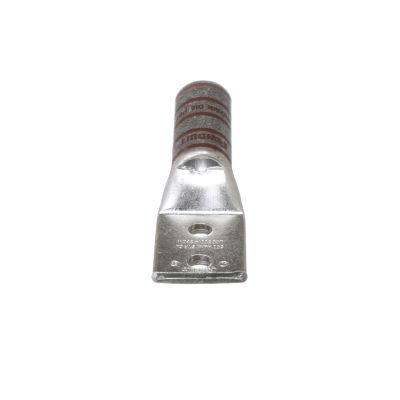

Panduit Pan-Lug LCC500-38DW-6 LCC-W 2-Hole Compression Connector Lug, 500 kcmil Stranded Copper Conductor, Die Code: P87, 3/8 in Stud, Tin Plated Copper
Lug Compression Connectors
7596709
LCC500-38DW-6
Panduit
$0.00
/ ea
Panduit Pan-Lug Compression Connector Lug, 2-Hole, Series: LCC-W, Stranded Copper Conductor, 500 kcmil Conductor, Die Code: P87, 35 kV, 3/8 in Stud, Straight Tongue, 1.54 in W x 0.22 in THK Tongue, 4.94 in Overall Length, Long Barrel, 0.84 in ID x 1.06 in OD x 2.5 in L Barrel, 1 in Stud Hole Spacing, 2-9/16 in L Wire Strip, 90 deg C, 2.56 in Mounting Hole, Tin Plated Copper, Brown
- Features
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Inspection window to visually assure full conductor insertion
- Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
