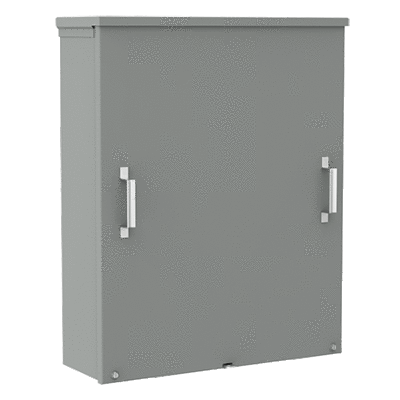

nVent Hoffman A30R3012NK
Hoffman Enclosure, C Style Body, Series: A90S3, 30 in Height, 30 in Width, 12 in Depth, NEMA 3R/IP32 NEMA Rating, Screw Cover, Lock: Padlock, Wall Mounting, Steel, Galvanized, Gray
Supporting Information
- Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet|Slip-on removable cover fastened with plated steel screws along bottom edge|Handles on larger sizes (see table)|Embossed mounting holes on back of enclosure|Knockouts in bottom of 16 and 14 ga enclosures|Provision for padlocking|No gasketing|Enclosures are finished with paint over plated surfaces|Top and bottom thickness gauge is the same as the body thickness gauge unless otherwise noted in table
- 16, 14 or 12 ga galvanized steel
- Drip shield top and seam-free sides, front and back
- Slip-on removable cover fastened with plated steel screws along bottom edge
- Handles on larger sizes
- Embossed mounting holes on back of enclosure
- Knockouts in bottom of 16 and 14 ga enclosures
- Provision for padlocking
- No gasketing
- Brand: nVent HoffmanColor: GrayCover Type: ScrewDepth: 12Finish: Galvanized
