Molex 303000P80M100

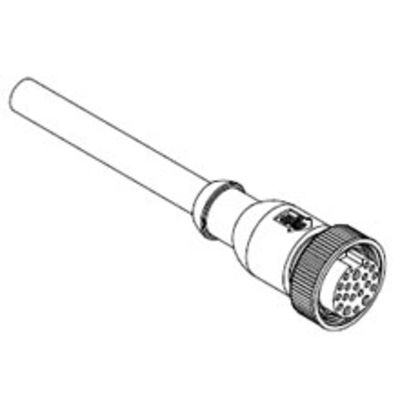

Brad Mini-Change 303000P80M100 130008 A-Size/B-Size/C-Size Single Ended Cordset, 1-1/4 in C-Size Female Connector, 10 m L Cable, 19 Poles, Single Keyway
Sensor Cables and Connection Systems
5506192
303000P80M100
Molex
$0.00
/ ea
Brad Mini-Change Cordset, A-Size/B-Size/C-Size Single Ended, Series: 130008, Female Connector, 1-1/4 in C-Size Connector, PVC, Jacketed Cable, 10 m Cable Length, PVC Cable, 19 Pole, Single Keyway, 300 VAC/VDC, 2/3 A, Straight, Violet, Red, Gray, Red/Blue, Blue, Green, Brown, White/Green, White/Yellow, White/Gray, Black, Yellow/Green, Yellow/Brown, Brown/Green, White, Yellow, Pink, Gray/Brown, Gray/Pink Wire Pin, IP67 IEC, NEMA 6P
- Features
- Patented Quad-Beam™ socket contact with stainless steel sleeve maintains consistent pressure on the male pin to ensure optimum conductivity
- Molded key indicator easier alignment and mating of connector
- Sealed to an IP67 rating prevents the entry of water during temporary submersion at a limited depth
- Gold over nickel plated contacts high performance, long-lasting plating that maintains low resistance through many mate/unmate cycles
- Integral strain relief provides 100 lb minimum cable strain relief, radiates stress in side-loaded conditions
