Littelfuse SOO02.5
Littelfuse SOO02.5 Time Delay Plug Fuse, 2.5 A, 125 VAC, 10 kA, Round Body
Plug Fuses
609592
SOO02.5
Littelfuse
$0.00
/ ea

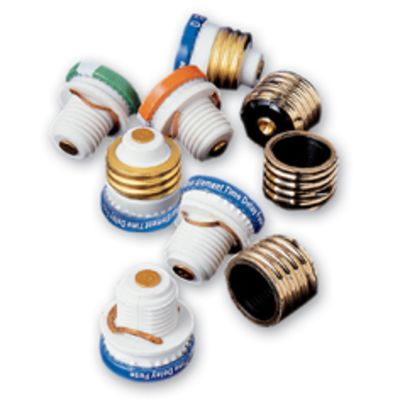

SOO Fuses are dual-element time delay Type S fuses designed for motor and motor branch-circuit protection; also suitable for all general purpose circuits.
- Features
- The national electric code now permits Edison base fuses to be used only for replacements in existing installations and then, only when there is no evidence of overfusing or tampering
- All new Edison-based fuse holders must have type S fuse adapters installed before they are placed in service
- Designed to prevent installation of wrong size fuses, Type S adapters (SAO series) screw into Edison base fuse holders so they may accept Type S fuses
- Once installed the adapters cannot be removed
- To prevent shunting of open fuses or over-fusing and to reduce nuisance fuse opening, it is recommended that SAO adapters with properly rated SOO series fuses be installed in all Edison base fuse holders
- 10 kA (rms symmetrical) interrupt rating
- Non-Metallic
