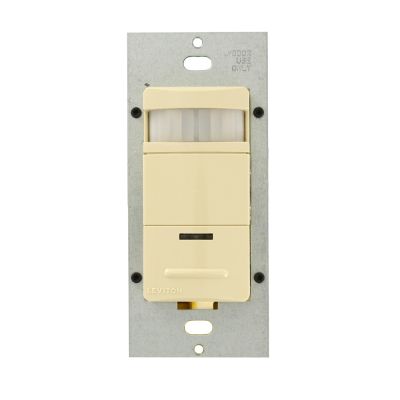

Leviton ODS10-TDI
Leviton Decora ODS10-TDI 1-Pole Vacancy Sensor, 120/230/277 VAC, Passive Infrared Sensor, 2100 sq-ft Coverage, 180 deg Viewing, Wall Mount
Occupancy and Motion Sensors
7553062
ODS10-TDI
Leviton
$0.00
/ ea
Manual ON/Auto OFF Passive Infrared Wall Switch Vacancy Sensor 2100 Sq. Ft. Coverage 180 Degree - Ivory
- Features
- Fits in standard wallbox and replaces 1-pole wall switch, gangable with other units
- Low profile design eliminates obtrusive "scanning-device" look
- Elegant Decora® wallplates complement any interior for sleek aesthetics, uses Decora® wallplates and coordinates with Leviton® popular line of Decora® wiring devices
- 180 deg field of view provides approximately 195 sq-m of coverage
- Convenient pushbutton provides manual ON/Off light switching at any time
- Two dual element PIR sensors used to widen detection range
- Segmented fresnel lens provides optimum sensitivity and performance designed with an extensive "minor motion" area where even slight body movements will be detected
- Designed with an extensive ''minor motion'' area where even slight body movements will be detected
- Vandal-resistant PIR lens
- Horizontal field-of-view may be adjusted between 180 and 60 deg of arc by using integral blinders located on either side of the lens, no masking tape required
- Manual On/auto Off mode for installations where manual On switching is required but auto Off switching is still desired for CEC title 20 and 24 energy savings
- Red LED indicator light flashes when sensor detects motion to verify detection is active
- Time delay adjustment for delayed Off time settings of 30 sec (for walking test), 10, 20 and 30 min, allows customized adjustments to maximum energy savings
- Vacancy confirmation when the time out expires and the lights turns Off, a 30 sec vacancy confirmation exists to turn the lights back ON
- False detection circuitry
- Relay switches at the zero crossing point of the AC power curve to ensure maximum contact life and compatibility with electronic ballasts
- Exclusive Leviton® high inrush stability (HIS) circuitry, specifically designed to handle today's high inrush electronic ballast loads and offer unmatched durability and service
- No neutral design is optional for retrofit applications
- 1-unit can be used for 120 to 277 VAC lighting, compatible with both electronic and magnetic ballasts
