Legrand TR8300HLA

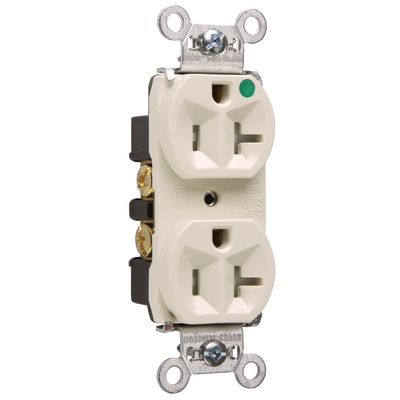

Pass & Seymour TR8300HLA Duplex Heavy Duty Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Light Almond
Receptacles
7409385
TR8300HLA
Legrand
$0.00
/ ea
20A 125V Hospital Grade Tamper-Resistant Compact Outlet Light Almond
- Features
- Impact resistant nylon face
- 1-piece heat treated triple wipe brass power contact
- Easily accessed break OFF line contact connecting tab for fast and easy split-circuit wiring
- Corrosion resistant, zinc plated steel strap is locked in
- Internal screw pressure plate back wire and side wire line terminals accept 14 to 10 AWG copper or copper clad conductors
- High strength thermoplastic back body
- Auto-ground clip assures positive ground
- Compact design for easy installation
- Tri-drive terminal and mounting screws
- Meets National Electrical Code tamper resistant requirements
- Protects children - patented shutter system helps prevent improper insertion of foreign objects
- 0.032 in THK brass triple wipe power contacts for lasting retention
- Terminal compartments isolated from each other for positive conductor containment
- Withstands 2000 VAC minimum dielectric voltage
- Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Terminal identification in accordance with UL498 (brass, white, green)
- UL 94-V2 flammability rating
