Legrand TR5362GRYSP

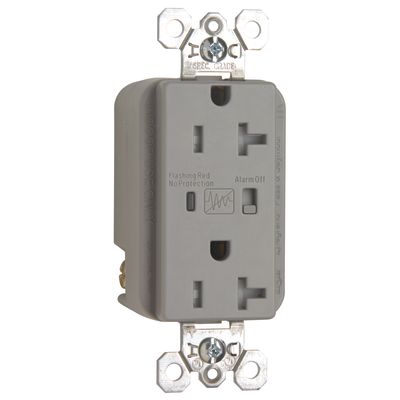

Pass & Seymour TR5362GRYSP Duplex Extra Heavy Duty Surge Protective Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
Receptacles
7252073
TR5362GRYSP
Legrand
$0.00
/ ea
Tamper-Resistant Extra Heavy-Duty Surge Protective Duplex Receptacle, Gray
- Features
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Auto-ground clip assures positive ground
- Easily accessed break-off line contact connecting tab for fast and easy split circuit wiring
- Backed-out tri-drive brass terminal screws for faster installation
- Internal screw pressure plate back
- 0.032 in THK, brass triple wipe power contracts for lasting retention
- Corrosion-resistant plated steel strap is locked in to the face and back body to resist pulling away from the face/body assembly
- Two drive screws anchor strap to back body and face where abrupt removal torque is greatest
- Side wire capability
- Withstands 2000 VAC minimum dielectric voltage
- Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- UL 92-V-2 flammability rating
- Extra heavy duty surge protective duplex receptacle offers increased transient protection, reliability and protection notification (audible alarm with LED indicator)
