Legrand PS8300HW

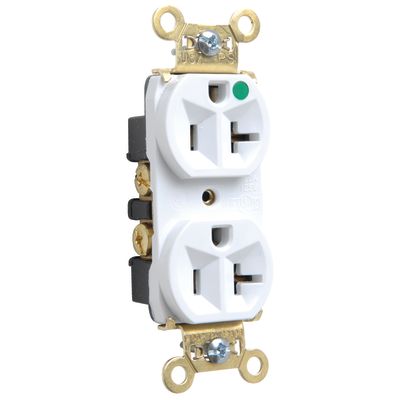

Pass & Seymour PS8300HW Duplex Heavy Duty Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Receptacles
6788534
PS8300HW
Legrand
$0.00
/ ea
Heavy-Duty Hospital Grade Duplex Receptacle Back and, Side Wire 20amp 125volt White
- Features
- Heavy duty brass strap for added strength and ground conductivity
- Auto-ground clip assures positive ground
- Easily accessed break-off line contact connecting tab for fast and easy split circuit wiring
- Internal screw pressure plate back and side wire capability
- 2-drive screws anchor strap to back body and face
- Tri-drive brass terminal screws
- Strap tabs wrap-around face to prevent strap from separating from face and back body
- 0.032 in THK, brass triple wipe power contracts for lasting retention
- Two back wire holes for more wiring flexibility
- Withstands 2000 VAC minimum dielectric voltage
- Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Terminal identification in accordance with UL 498 (brass, white, green)
- Ratings are a permanently marked on the device
