Legrand 2603W
Pass & Seymour 2603-W 3-Way Decorator Switch, 120/277 VAC, 15 A, 3 W
Decorator and Rocker Switch
31596
2603W
Legrand
$0.00
/ ea

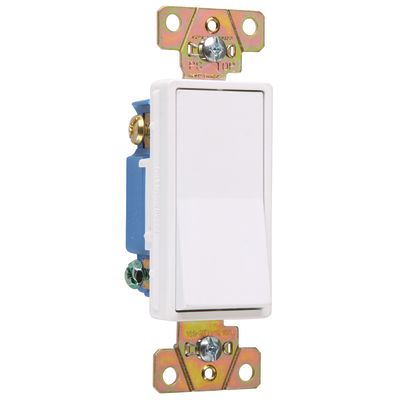

Three-way, Back and Side Wire, Decorator Switch, 15 amps, 120/277 volts, White.
- Features
- Specification grade decorator switch
- Impact resistant polycarbonate back body and frame
- Cushioned thermoplastic paddle assures smooth, quiet, long term operation
- Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts
- Internal screw pressure plate back and side wire capability for easy installation with 14 to 10 AWG stranded or solid copper clad wire
- Terminals made of high conductivity brass and serrated for maximum wire gripping
- Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance
- Integral auto-ground clip for positive ground to metal boxes
- Tri-drive ground, terminal and mounting screws
- All terminal screws backed out, ready-to-install
- Back and side wired connection
- Heavy gauge steel strap for superior strength
- No exposed terminals create a finger safe application before, during and after installation
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections
- Large brass contacts snugly terminate on device blade terminals, audible snapping latch assures connection, allows release
- Housing secures terminations and conductors in a UL Listed, finger safe housing
- 1500 VAC minimum dielectric strength voltage
