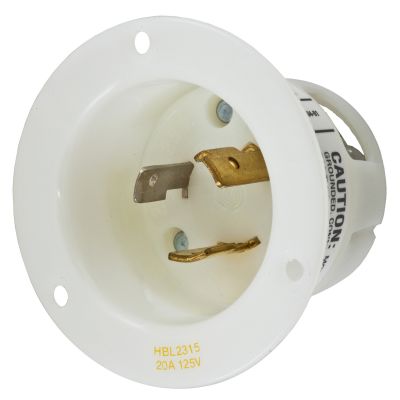

Hubbell Wiring HBL2315
Wiring Device-Kellems Twist-Lock Insulgrip HBL2315 1-Phase Extra Heavy Duty Grounding Screw Mount Locking Flanged Inlet With Mounting Screw, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Plugs Connectors
144289
HBL2315
Hubbell Wiring
$0.00
/ ea
Locking Devices, Twist-LockпїЅ, Industrial, InsulgripпїЅ Flanged Inlet, 20A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-20P, Screw Terminal, Nylon casing, Back wired, White
- Features
- Impact resistant thermoplastic construction
- Backwired terminations for ease of installation
- 32 to 10 AWG multiple drive terminal screws slotted, Phillips and Robertson
- Withstands 2000 VAC minimum dielectric voltage
- 16 to 8 AWG terminal accommodation
- Clear polycarbonate terminal retainer
- Brass blade material, NO 10 to 32 brass (white finish on neutral screw when used) multi-drive terminal screw, NO 10 to 32 brass (green finish) multi-drive ground screw
- 0.08 in steel nickel plated terminal clamp
- Steel zinc plated body holding screw
- Natural white nylon body contact carrier material and flanged casing material
- Nickel plated brass round head screws mounting screw material
