Hubbell Wiegmann WA60X4912SSN4

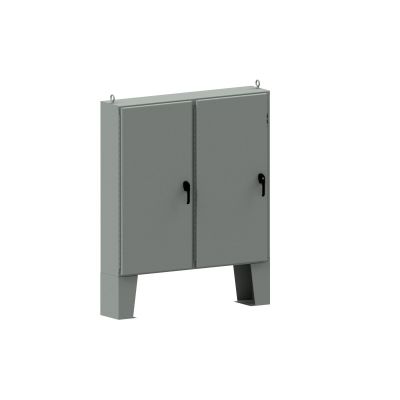

WIEGMANN WA60X4912SSN4 WAX-SSN4 2-DOOR DISCONNECT ENCLOSURE, 49-3/4 IN W X 12.12 IN D X 60 IN H, NEMA 4/4X/12 NEMA RATING, 304 STAINLESS STEEL
Enclosure General Purpose
7550533
WA60X4912SSN4
Hubbell Wiegmann
$0.00
/ ea
Wiegmann Disconnect Enclosure, 2-Door, Series: WAX-SSN4, 49-3/4 in Width, 12.12 in Depth, 60 in Height, NEMA 4/4X/12 NEMA Rating, Continuous Hinged Cover, 44 in W x 56 in H Panel, Lock: 3-Point Latch/Padlock Handle, 36250.556 cu-in Capacity, Floor/Right Flange Mounting, 304 Stainless Steel, Smooth Grained, Silver
- Features
- Bodies and doors fabricated from 10 ga 304 stainless steel
- Seams are continuously welded and ground smooth
- Body stiffeners provided for extra rigidity
- Heavy gauge continuous hinges are provided to secure door
- Heavy duty three-point 316L stainless steel padlocking handles on all doors
- Print pocket is provided
- 15 in floor stands are welded to enclosure
- Doors are sealed with polyurethane poured in place gasket
- Heavy duty lifting eyes and provisions for fluorescent lighting are provided
- Panel supports
- Grounding provisions provided
- Unless specified, the right door is considered to be the "Master" door on the "Right Flange" mount enclosures
- A mechanical interlock is provided and prevents the slave door from opening before opening the master door
- Disconnects come with a universal cutout which provides mounting for most disconnect operators by using operator adapters
- Removable center post permits easy panel installation
