Hubbell Wiegmann ABN12603812

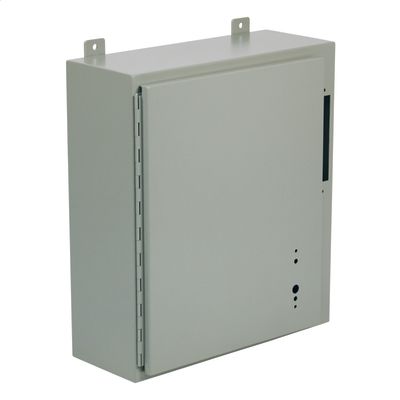

WIEGMANN ABN12603812 1-DOOR DISCONNECT ENCLOSURE, 38.38 IN W X 12.13 IN D X 60 IN H, NEMA 12/13, CARBON STEEL
Enclosure General Purpose
7181493
ABN12603812
Hubbell Wiegmann
$0.00
/ ea
Wiegmann Disconnect Enclosure, 1-Door, Series: ABN12, 38.38 in Width, 12.13 in Depth, 60 in Height, NEMA 12/13, Hinged Cover, 34 in W x 57 in H Panel, Lock: 2-Point Latch, 27932.96 cu-in, External Mounting Feet/Flange/Wall Mount, Carbon Steel, Textured/Polyester Powder Coated, Gray
- Features
- Bodies and doors fabricated from 14 ga steel
- Seams are continuously plasma welded and ground smooth
- Rolled lip around all sides of enclosure opening excludes liquids and contaminants
- Doors easily removed by pulling continuous hinge pin
- Polyurethane poured in place gasket
- External mounting feet are provided
- Collar studs for mounting
- Grounding provisions provided
- Holes are provided in body and door for mounting disconnect switch, operating mechanism and door hardware
- Guide brackets and door catch are welded to inside of door
- Locking bars are also provided for door hardware
- Spacers and screws are provided to secure disconnect switch and fuse block adapter plate to the panel
- Print pocket is provided
- Enclosures 40 in H and larger require three-point door hardware
- Instructions to locate and install disconnect switches, circuit breakers and operating mechanisms are provided
