Hubbell Killark FXCS-2B1
Killark SEAL-X FXCS-2B1 Dead End Factory Sealed Single Pushbutton Control Station With Splice Box, 600 VAC, 1NO Contact, 1 Operator, NEMA 3/7CD/9EFG NEMA Rating
Zone Rated Hazardous Location
7089629
FXCS-2B1
Hubbell Killark
$0.00
/ ea

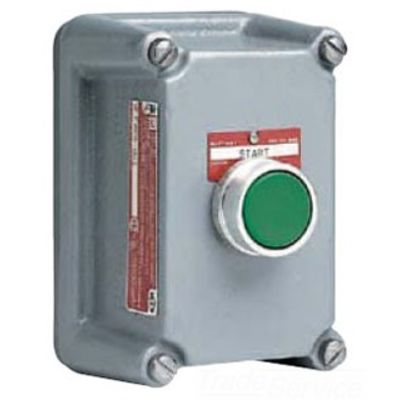

FXCS Series - Aluminum Dead-End Momentary Contact Single Push Button Control Station - Factory Sealed - Green Button With "Start" Nameplate -Hub Size 3/4 Inch - 1NO Contact Rating
- Features
- Elimination of external sealing requirements
- Lower installation cost
- NEMA 3 weatherproof
- Color coded wiring with more wiring space for easier field installation
- Stainless steel captive screws for cover assembly
- Ground boss for grounding in the splice box
- Device bodies and covers are cast copper-free aluminum alloy
- Operating shaft in both pushbuttons and selector switches are stainless steel
- Pushbutton, selector switches and pilot light bodies are copper-free aluminum
- 60 A at 120 VAC, 30 A at 240 VAC, 15 A at 480 VAC, 12 A at 600 VAC inrush, 6 A at 120 VAC, 3 A at 240 VAC, 1.5 A at 480 VAC, 1.2 A at 600 VAC breaking, 10 A at 120 VAC, 10 A at 240 VAC, 10 A at 480 VAC carrying contact rating
- 0.55 A at 125 VDC, 0.275 A at 250 VDC inrush, 0.55 A at 125 VDC, 0.275 A at 250 VDC breaking, 2.5 A at 125/250 VDC carrying
