Fluke Corporation FLUKE-902-FC

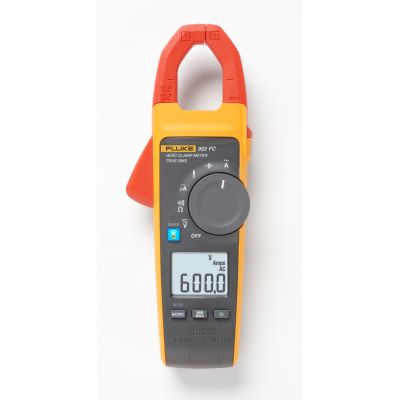

Fluke FLUKE-902FC HVAC Wireless Clamp Meter, 0.01/0.1 A, 600 VAC/VDC, 60/600/6000 kOhm
Clips for Testers and Meters
7491519
FLUKE-902-FC
Fluke Corporation
$0.00
/ ea
Fluke Clamp Meter, HVAC Wireless, 0.01/0.1 A, 600 VAC/VDC Electrical Rating, 60/600/6000 kOhm Resistance, 2% +/-5 Digits at 45 to 65 Hz, 2.5% +/-5 Digits at 65 to 400 Hz AC Current Accuracy, 1.5% +/-5 Digits Voltage Accuracy, Safety Rating: CAT IV 600 VAC, CAT III 1000 VAC, (2) AA Alkaline Batteries Power Source, 14 to 122 deg F Operating, 9.06 in L x 3.3 in W x 1.39 in H Dimensions
- Features
- Ergonomic design fits in your hand and can be used while wearing personal protective equipment
- Large, easy to read backlight display
- True-RMS voltage and current for accurate measurements on non-linear signals
- Minimum and maximum recording to capture variations automatically
- Resolution - 0.01/0.1 A, 0.1 VAC
- 2.5 at 220 A, 3.0 at 180 A, >1.4 at 600 A at 50/60 Hz crest factor
- Resistance - 0.1/1/10 resolution, 1% +/-5 digits accuracy
- 100/1000 uF capacitance range
- 0.1/1 uF resolution, 1% +/- 4 digits capacitance accuracy
- 0.1 C/F resolution, 1% +/-8 digits contact temperature accuracy
- 75 dBA nominal 15 cm from case front continuity beeper
- 1000 VAC maximum voltage between any terminal and earth ground
- -40 to 140 deg F storage temperature
- <=90% at 50 to 86 deg F, <=75% at 86 to 104 deg F, <=45% at 104 to 122 deg F operating relative humidity
- 9842 ft operating, 39, 370 ft storage altitude
- IP30 non-operating enclosure rating
