Eaton APJ10487

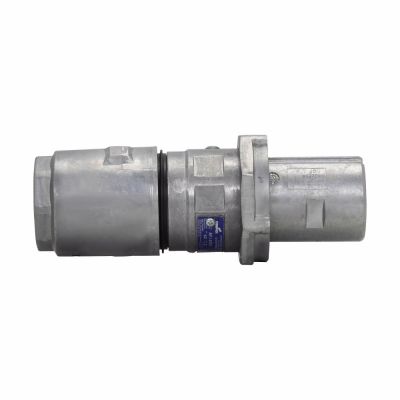

Crouse-Hinds Arktite APJ10487 Grounding Style 2 Heavy Duty Watertight Weatherproof Mating Plug, 600 VAC/250 VDC, 100 A, 4 Poles, 3 Wires, Natural
Pin and Sleeve Devices
84548
APJ10487
Eaton
$0.00
/ ea
Eaton Crouse-Hinds series Arktite APJ plug, 100A, 0.875-1.70", Three-wire, four-pole, 50-400 Hz, Style 2, Copper-free aluminum, 600 Vac,250 Vdc
- Features
- Circuit breaking plugs through 100 A rating may be disconnected under load, 150 to 400 A units are for service disconnect use only
- Receptacles accept only plugs of the same amperage rating, style and number of poles, making it impossible to mismate and provides for positive polarization
- Extra wide electrical spacing allows for maximum safety
- Insulator materials are the result of intensive testing, selection has been made based on highest dielectric strength, maximum mechanical and impact resistance, lowest moisture absorption and highest arc tracking resistance
- A variety of installations is possible due to the availability of several types of back boxes
- Designed to withstand rough usage and the effects of adverse environments
- Reverse interior
