Berko MUH0541

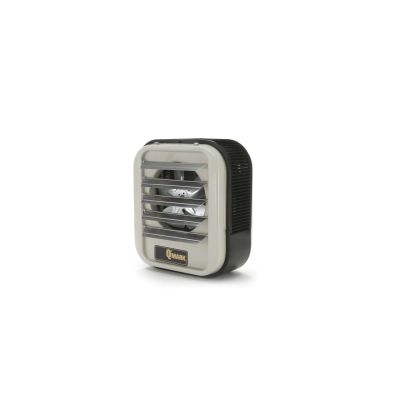

QMARK MUH0541 3-Phase Unit Heater, 5 kW, 480 VAC
Heaters
7407236
MUH0541
Berko
$0.00
/ ea
QMARK Unit Heater, 3-Phase, Series: MUH, 480 VAC, 6 A, 60 Hz Frequency, 5 kW Power, 350 cfm Flow Rate, 1600 rpm Speed, 45 deg F, Surface Mounting, 8 ft Horizontal/9 ft Vertical Mounting Height, 20 ga Steel, Beige, 14 in W x 7-1/2 in D x 16 in H Dimensions
- Features
- Heavy gauge die-formed steel housing, two-toned, smartly styled
- Advanced pull-through air flow design draws air across heating element for more even air distribution and cooler element operation
- Specially designed venturi outlet to meet that added throw as required in vertical position
- Branch circuit fusing
- Completely enclosed fan motor
- Aluminum-finned, copper clad steel sheath heating element has longer useful life, because of cooler sheath temperature and faster heat dissipation
- Fan delay feature eliminates cold drafts
- Element heats up before fan cuts in, then fan continues to distribute heat after element shuts off
- Ruggedly built, yet lighter weight for easier installation, no piping flutes, valves or traps
- Individually adjustable discharge louvers to control air flow
- Choice of optional diffusers for variety of air patterns, maximizing heat concentration and coverage in the vertical position
