Baldor GF5021AJ

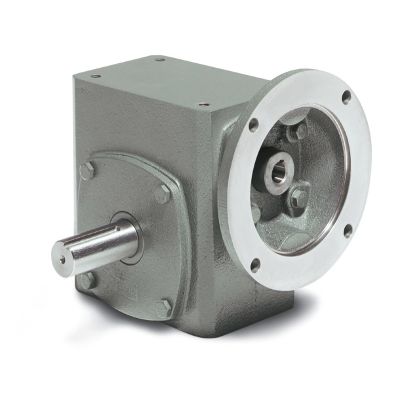

Baldor-Reliance GF5021AJ 900 Continuous-Duty Type F Right Angle Worm Gear Speed Reducer, C-Face Quilled Input, Solid Shaft Output, 0.54 hp, 50:1 Gear Ratio, 35 rpm Maximum Output, 643 in-lb Torque Rating
Non-Helical Worm Right Angle Drives
7479422
GF5021AJ
Baldor
$0.00
/ ea
Baldor-Reliance Right Angle Worm Gear Speed Reducer, Continuous-Duty Type F, Series: 900, 50:1 Gear Ratio, 0.54 hp, C-Face Quilled Input, Solid Shaft Output, 5/8 in Input, 1 in Output, 35 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 643 in-lb, 2.06 in Centre Distance, 0.187 x 0.093 in Keyway, Right Hand, Synthetic Oil Lubrication, 56C Mount, Cast Iron, Standard, 16-1/2 in L X 11-3/4 in W X 11-3/8 in H
- Features
- Chill cast precision hobbed tin bronze gear provides superior wear characteristics
- Carburized and ground worm provides optimum efficiency and cool quiet operation
- Plunge ground seal journals for optimum seal life
- Completely sealed and lubricated for life with USDA H1 food grade synthetic oil which ensures years of trouble-free operation
