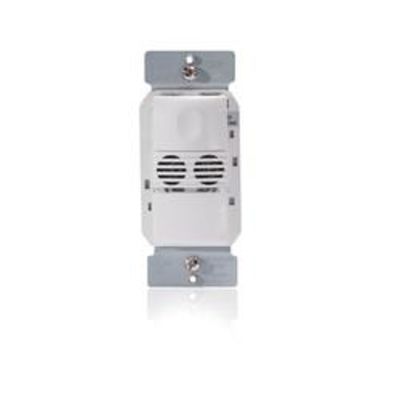

Wattstopper UW-100-W

WattStopper UW-100-W 1-Relay Wall Switch Occupancy Sensor, 120/230/277 VAC, Ultrasonic Sensor, 300 sq-ft Coverage, 180 deg Viewing, Strap Mount
Occupancy and Motion Sensors
6869329 UW-100-W
Wattstopper
$0.00 / ea

Wattstopper UW-100-W
  • Material: Plastic
  • Mounting Type: Strap
  • Color: White
  • Connection Type: Flying Lead
  • Control Output: Automatic On/Off, Manual On/Off
  • Coverage: 300
  • Dimensions: 2.73 in L x 1.76 in W x 1.83 in H
  • Lamp Type: Fluorescent/Incandescent/LED
  • Power Rating: 0 to 1200 W, 1/6 hp
  • Sensor Type: Ultrasonic
  • Series: UW Series
  • Temperature Rating: 35
  • Time Delay: 5 to 30
  • Type: 1-Relay
  • Viewing Angle: 180
  • Voltage Rating: 120/230/277
The UW-100 ultrasonic wall switch sensor can turn lights OFF and ON based on occupancy. It is characterized by high sensitivity to small and large movements, appealing aesthetics, and a variety of features. (white)
QTY
Add to Wishlist
  • Features
  • Time delay adjustments - 5 to 30 min at minimum, 3 minimum if no activity after 30 sec at walk through mode, 5 sec for 10 min with DIP switch setting at test mode
  • Minimum to maximum (trimpot), Off ultrasonic adjustment
  • 0 to 800 W tungsten or ballast, 1/6 hp motor load limit for each relay at 120 VAC and 0 to 1200 W ballast load limit for each relay at 277 VAC
  • Complies with 2011 NEC requirements
  • Zero crossing for long relay life
  • Vandal-resistant lens combines precise coverage with durability
  • Selectable walk thorough mode turns lights off 3 min after the room is initially occupied if no motion is detected after the first 30 s
  • Test mode allows quick and easy adjustments
  • Selectable audible alert for impending shutoff
  • LED indicates occupancy detection
  • In automatic mode, sensor returns automatically to auto On after lights are turned Off manually, ideal for presentations
  • Optional light level sensing with simple setup
  • Service mode allows sensor to operate as a service switch in the unlikely event of a failure
  • Sensor coverage tested to NEMA guide publication WD 7 to 2000
  • Compatible with decorator wallplates
  • One relay and one On/Off button
  • Magnetic or electronic ballast load type
  • Can turn lights Off/On based on occupancy
  • It is characterized by high sensitivity to small and large movements
