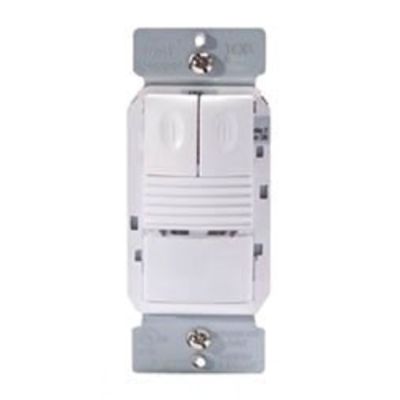

Wattstopper PW-203-I

WattStopper PW-203-I Dual Relay Multi-Way Wall Switch Occupancy Sensor, Passive Infrared Sensor, 525 ft Coverage, 180 deg Viewing, Surface Mount
Occupancy and Motion Sensors
7098964 PW-203-I
Wattstopper
$0.00 / ea

  • Material: Plastic
  • Mounting Type: Surface
  • Color: Ivory
  • Connection Type: Flying Lead
  • Control Output: Automatic On/Off, Manual On/Off
  • Coverage: 525
  • Dimensions: 2.73 in L x 1.76 in W x 1.83 in D
  • Enclosure Type: NEMA WD7
  • Lamp Type: LED
  • Power Rating: 0 to 1200 W, 1/6 hp
  • Response Frequency: 50/60
  • Sensor Type: Passive Infrared
  • Series: PW-203
  • Temperature Rating: 35
  • Time Delay: 5 to 30
  • Type: Dual Relay Multi-Way
  • Viewing Angle: 180
WattStopper Wall Switch Occupancy Sensor, Dual Relay Multi-Way, Series: PW-203, 0 to 1200 W, 1/6 hp Power, Passive Infrared Sensor, 525 ft Coverage, 180 deg Viewing, 5 to 30 min Time Delay, LED Lamp, 50/60 Hz Response, Flying Lead Connection, Automatic On/Off, Manual On/Off Control Output, NEMA WD7 Enclosure, Surface Mounting, 35 deg C, Plastic, Ivory, 2.73 in L x 1.76 in W x 1.83 in D Dimensions
  • Features
  • High sensitivity and dense coverage for exceptional performance
  • Two relays for control of two separate lighting leads or circuits
  • Color matched lenses and low profile for appealing design
  • Allows multi-way control from one of up to four control locations
  • Selectable operation, walk through, test and presentation modes for increased energy savings and convenience
