Wattstopper CB-100-3

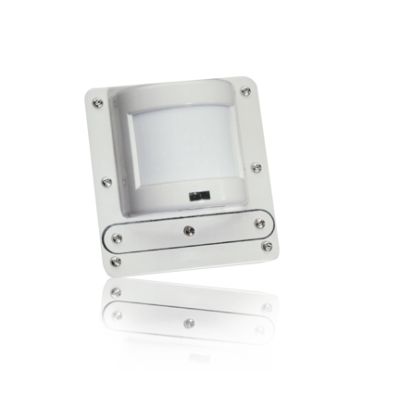

WattStopper CB-100-3 Wall Mount Occupancy Sensor, 24 VAC/VDC, Passive Infrared Sensor, 120 ft Coverage, 180 deg Viewing, Ceiling/Swivel Bracket/Wall Mount
Occupancy and Motion Sensors
6994156
CB-100-3
Wattstopper
$0.00
/ ea
- Amperage Rating: 20
- Material: Plastic
- Mounting Type: Ceiling/Swivel Bracket/Wall
- Color: Beige
- Connection Type: Flying Lead
- Control Output: Automatic On/Automatic Off
- Coverage: 120
- Dimensions: 3.94 in H x 3.74 in W x 2.36 in D
- Lamp Type: LED
- Sensor Type: Passive Infrared
- Temperature Rating: 35
- Time Delay: 15 s, 5 to 10 min
- Viewing Angle: 180
- Voltage Rating: 24
This passive infrared (PIR) occupancy sensor was engineered for installation in cold and damp conditions including the outdoors. It uses electronic components to allow for reliable operation in extreme temperature and environmental conditions. Coverage up to 120 linear feet.
- Features
- Gasketed, watertight enclosure prevents moisture and dust from entering the sensor and affecting occupancy detection
- Choice of three different coverage patterns depending on needs of the application
- Swivel mount bracket for convenient installation
- Convenient dip switch adjustable digital time delay of 15 sec, 5 min or 10 min
- Dip switch adjustable sensitivity has 4 settings ranging from minimum to maximum
- Isolated relay can interface with HVAC, EMS and monitoring systems or with an additional lighting load
- Red LED indicates occupancy detection
- Dual element, temperature compensated pyro-electric sensor
- Lighting load
- Aisleway lens dual element low temperature
- 2000 sq-ft (IR range On axis) coverage
- Watertight
