Woodhead 36503

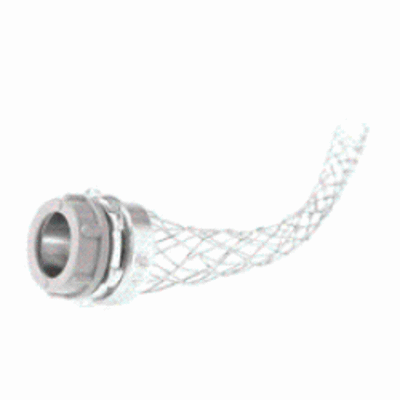

Woodhead reg; 36503 130097 Dust Tight Strain Relief Cord Connector With Grip, 1/2 in NPT Trade, 0.3 to 0.43 in Cable Openings, Steel, Galvanized
Strain Relief Grips
38356
36503
Woodhead
$0.00
/ ea
- Cable Openings: 0.3 to 0.43
- Connection Type: Straight MNPT
- Finish: Galvanized
- Material: Steel
- Mesh Length: 4-3/4
- Series: 130097
- Trade Size: 1/2 in NPT
- Type: Dust Tight Strain Relief
Woodhead® Cord Connector, Dust Tight Strain Relief, Series: 130097, 1/2 in NPT Trade, Cable Openings: 0.3 to 0.43 in, Straight MNPT Connection, 4-3/4 in Mesh Length, Steel, Galvanized
- Features
- Wide diameter range and general purpose character accommodate many applications including electrical boxes and enclosures, machine tools and bus drops
- Galvanized steel mesh construction provides great strength
- Insulated throat provides conductor protection upon flexing and wire entry/exit
- Aluminum threaded body, zinc plated steel nut, zinc plated steel and aluminum mesh collar, neoprene dust seal gasket, galvanized steel mesh material, thermoplastic insulating bushing
- Dust-tight, general purpose environmental rating
- Single weave mesh
