Woodhead 66W08

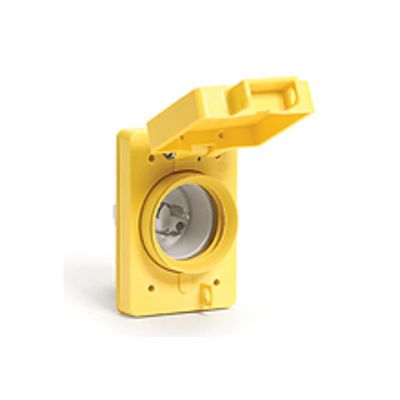

Woodhead Watertite 66W08 130147 Male Locking Blade Receptacle With Single Flip Coverplate, 250 VAC, 20 A, 3 Poles, 3 Wires, Yellow
Receptacles
7617381
66W08
Woodhead
$0.00
/ ea
- Amperage Rating: 20
- Color: Yellow
- Cord Diameter: 0.187 to 0.812
- Enclosure: IP55/IP56/IP57/IP65/IP66/IP67
- Horsepower: 5
- Material: NEoTEX® Paracril OZO Rubber
- Number of Poles: 3
- Number Of Wires: 3
- Series: 130147
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: Male
- Voltage Rating: 250
Woodhead Watertite Locking Blade Receptacle, Male, Series: 130147, 250 VAC, 20 A, 5 hp, 3 Pole, 3 Wires, IP55/IP56/IP57/IP65/IP66/IP67 Enclosure, 0.187 to 0.812 in Diameter Cord, -40 to 75 deg C, Screw Terminal, NEoTEX Paracril OZO Rubber, Yellow
- Features
- Color coded 1/4 in terminal screws preset in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screw drivers
- Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- 3-piece strain relief seals cord without damaging the cord
