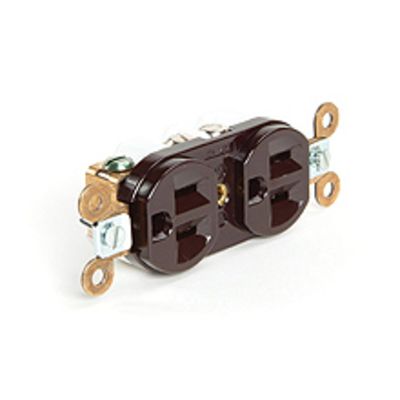

Woodhead 5362DW
Woodhead reg; Safeway reg; 5362DW 130148 Heavy Duty Female Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
Receptacles
38775
5362DW
Woodhead
$0.00
/ ea
- Amperage Rating: 20
- Color: Brown
- Grade: Industrial
- Material: Rubber
- Nema Rating: NEMA 5-20
- Number of Poles: 2
- Number Of Wires: 3
- Series: 130148
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: Heavy Duty
- Voltage Rating: 125
Woodhead® Safeway® Female Receptacle, Heavy Duty, Series: 130148, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20 Rating, Industrial Grade, -40 to 75 deg C, Screw Terminal, Rubber, Brown
- Features
- NEoTEX® Paracril OZO rubber body yields the best performance for abrasion, chemical exposure and temperature extremes within the Super-Safeway offering
- Rugged nylon bodies within the Safeway® offering provide exceptional durability and performance
- Color coded 1/4 in terminal screws preset in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screw drivers
- Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Two-piece cord clamp strain relief includes tri-drive screws to firmly secure the cord
- Nickel plated brass plug blades and connector contacts
- NEoTEX® Paracril OZO rubber Super-Safeway outer housing
- Nylon safeway outer housing
- Stainless steel face screw
- Nylon face insert
- Brass wire saddle clamp
- zinc plated steel cord clamp screws
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
- Duplex receptacle
