Woodhead 27W76MB

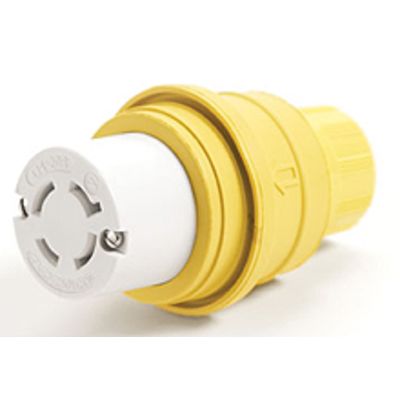

Woodhead reg; Watertite reg; 27W76MB 130147 Locking Blade Connector, 250 V, 20 A, 3 Poles, 4 Wires
Plugs Connectors
6778401
27W76MB
Woodhead
$0.00
/ ea
- Amperage Rating: 20
- Enclosure: NEMA 1/3/4/4X/5/6/6P/12/IP67
- Nema Rating: L16-20
- Number of Poles: 3
- Number Of Wires: 4
- Series: 130147
- Temperature Rating: -40 to 75
- terminal type: Screw
- Voltage Rating: 250
Woodhead® Watertite® Locking Blade Connector, Series: 130147, 250 V, 20 A, 3 Pole, 4 Wires, NEMA L16-20, NEMA 1/3/4/4X/5/6/6P/12 Enclosure, -40 to 75 deg C, Screw Terminal
- Features
- Multiple seal plug/connector interface keeps out contaminants resists vapor and water from highpressure wash down up to 1000 psi
- Color-coded 1/4 in terminal screws preset in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips and square-drive screw drivers
- Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Three piece strain relief seals cord without damaging the cord
