Woodhead 27W47MB

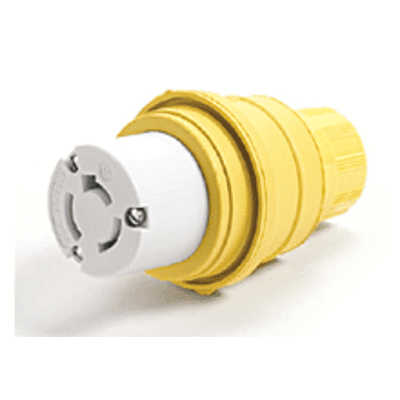

Woodhead reg; Watertite reg; 27W47MB 130147 Female Locking Connector With Locking Blade, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Plugs Connectors
7149299
27W47MB
Woodhead
$0.00
/ ea
- Amperage Rating: 20
- Color: Yellow
- Cord Diameter: 3/16 to 13/16
- Dimensions: 2-1/2 in Dia x 4-3/4 in L
- Enclosure: IP67
- Grade: Industrial
- Material: Rubber
- Nema Rating: NEMA L5-20
- Number of Poles: 2
- Number Of Wires: 3
- Series: 130147
- terminal type: Screw
- Type: Female
- Voltage Rating: 125
Woodhead® Watertite® Locking Connector, Female, Series: 130147, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA L5-20 Rating, Industrial Grade, IP67 Enclosure, 3/16 to 13/16 in Diameter Cord, Screw Terminal, Rubber, Yellow, 2-1/2 in Dia x 4-3/4 in L Dimensions
- Features
- Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure wash down upto 1000 psi
- Color coded 1/4 in terminal screws preset in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screw drivers
- Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Three piece strain relief seals cord without damaging the cord
- Nickel plated brass plug blades and connector contacts
- NEoTEX® Paracril OZO rubber outer housing and grommet
- Stainless steel face screw
- Nylon face insert
- Brass wire saddle clamp
