Woodhead 25W47MB
Woodhead reg; 25W47MB 130146 Female Connector With Locking Blade, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Plugs Connectors
6902709
25W47MB
Woodhead
$0.00
/ ea
- Amperage Rating: 15
- Color: Yellow
- Enclosure: IP67
- Nema Rating: NEMA L5-15
- Number of Poles: 2
- Number Of Wires: 3
- Series: 130146
- Temperature Rating: -40 to 75
- Voltage Rating: 125

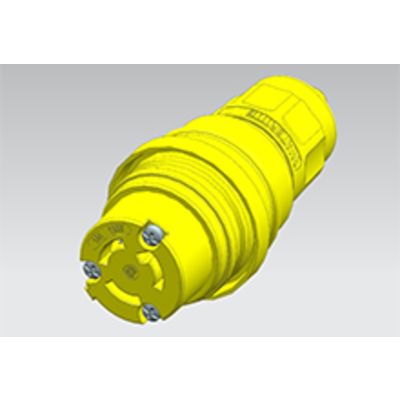

Woodhead® Female Connector, Series: 130146, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA L5-15 NEMA Rating, IP67 Enclosure, -40 to 75 deg C, Yellow
- Features
- F2 body 1/2 in cord grip
- Multiple seal plug/connector interface keeps out contaminants resists vapor and water from high pressure wash down up to 1000 psi
- Color-coded 1/4 in terminal screws preset in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight-blade, Phillips and square-drive screw drivers
- Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Three piece strain-relief seals cord without damaging the cord
