Woodhead 980-1610S

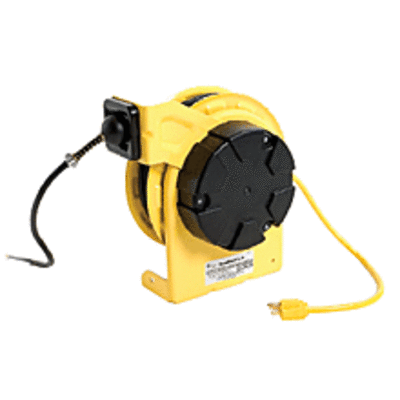

Woodhead reg; Super-Safeway reg; 980-1610S 130091 Standard Duty Cord Reel, 120 VAC, 8 A, 50 ft L Cord, 16 AWG Conductor
Cord, Cable and Hose Reels
6922246 980-1610S
Woodhead
$0.00 / ea

  • Amperage Rating: 8
  • Material: Polycarbonate/Steel
  • Conductor size: 16
  • Cord Length: 50
  • Dimensions: 7-3/4 in W x 11-3/4 in D x 14-1/4 in H
  • Lamp Type: Incandescent
  • Lamp Wattage: 30
  • Plug Type: NEMA 5-15
  • Reel Mounting Type: Rigid Base
  • Series: 130091
  • Type: Standard Duty
  • Voltage Rating: 120
Woodhead® Super-Safeway® Cord Reel, Standard Duty, Series: 130091, 120 VAC, 8 A, 50 ft Cord Length, 16 AWG Conductor, Rigid Base Reel Mounting, NEMA 5-15 Plug, Incandescent Lamp, 30 W Lamp, Polycarbonate/Steel, 7-3/4 in W x 11-3/4 in D x 14-1/4 in H Dimensions
  • Features
  • Powder coated steel construction provides durability
  • Swing mount or rigid mount, enclosed or open drum to fit any application
  • Simple tension adjustment and ratchet disengagement make it simple to customize for the job
  • Handlamps have switch and convenience outlet on handle
  • Spot light has switch and is wet location rated and low volt (12 VAC) for added safety
  • Ratchet lock cable movement
  • Ratchet drum lock
  • 2-position guide arm
  • Powder coated construction
  • 3-conductor configuration
  • 3 lb retraction weight
  • Reel mounted transformer
  • 1-1/2 ft cable length
  • NEMA 1 enclosure
