Woodhead 9385

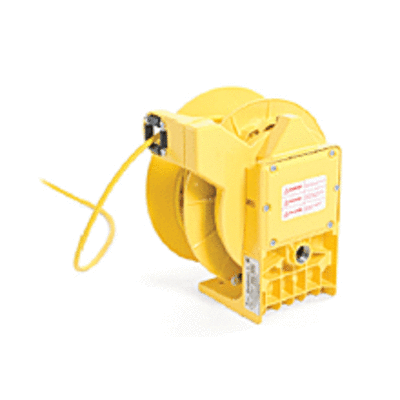

Woodhead reg; POW-R-MITE reg; 9385 130083 Cable Reel, 600 VAC, 18 A, 35 ft L Cord, 12 AWG Conductor, 4 Outlets
Cord, Cable and Hose Reels
402033 9385
Woodhead
$0.00 / ea

Woodhead 9385
  • Amperage Rating: 18
  • Material: Aluminum
  • Color: Yellow
  • Conductor size: 12
  • Cord Length: 35
  • Dimensions: 9.62 in W x 13.5 in D x 14.5 in H
  • Grade: Industrial
  • Number of Outlets: 4
  • Reel Mounting Type: Rigid Base
  • Series: 130083
  • Voltage Rating: 600
Woodhead® POW-R-MITE® Cable Reel, Series: 130083, 600 VAC, 18 A, 35 ft Cord Length, 12 AWG Conductor, Rigid Base Reel Mounting, 4 Outlets, Industrial Grade, Aluminum, Yellow, 9.62 in W x 13.5 in D x 14.5 in H Dimensions
QTY
Add to Wishlist
  • Features
  • NEMA 4 enclosure provides protection to water or dust, indoor and out
  • Cable guide is adjustable every 5 deg over a 270 deg arc allowing for the exact configuration to suit the application
  • Design prohibits annoying lock-out when cable is fully extended
  • Containerized main spring allow for safe, simple handling and replacement
  • Options from one to four outlets provide flexibility for many applications
  • 1 in NPT primary cable entry
  • Cast aluminum with yellow powder coat finish construction
  • Working end includes a ball stop and connector or outlet box
  • Easily disengaged as needed ratchet lock
  • Easily adjusted tension
  • Large, easy access spring junction box
  • 12/3 SOW cable
