Woodhead 92746

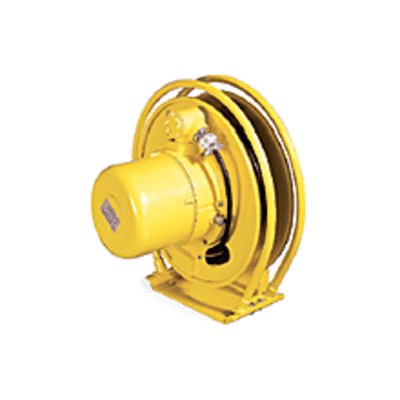

Woodhead reg; POW-R-MATIC reg; 92746 130085 Heavy Duty Cable Reel With Flying Lead, 600 VAC, 44 A, 40 ft L Cord, 6 AWG Conductor
Cord, Cable and Hose Reels
7326478 92746
Woodhead
$0.00 / ea

Woodhead 92746
  • Amperage Rating: 44
  • Material: Steel
  • Conductor size: 6
  • Cord Length: 40
  • Dimensions: 22.75 in W x 22.75 in D x 23.38 in H
  • Reel Mounting Type: Rigid Base
  • Series: 130085
  • Type: Heavy Duty
  • Voltage Rating: 600
Woodhead® POW-R-MATIC® Cable Reel, Heavy Duty, Series: 130085, 600 VAC, 44 A, 40 ft Cord Length, 6 AWG Conductor, Rigid Base Reel Mounting, Steel, 22.75 in W x 22.75 in D x 23.38 in H Dimensions
QTY
Add to Wishlist
  • Features
  • Containerized main spring allow for safe, simple handling and replacement
  • Reels are constructed with spring tension to lift or stretch cable with no more than 10% sag
  • Ratchet lock cable movement
  • Ratchet drum lock
  • Option available guide arm
  • Powder coated construction
  • 3-conductor configuration
  • 1 in NPT entry primary cable
  • 7 lb retraction weight
  • NEMA 3R enclosure
