Woodhead 92433

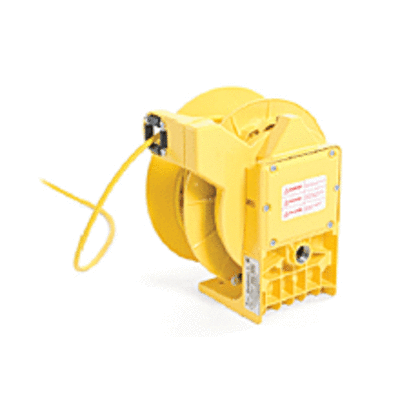

Woodhead reg; POW-R-MITE reg; 92433 130083 Cable Reel, 600 VAC, 18 A, 50 ft L Cord, 12 AWG Conductor
Cord, Cable and Hose Reels
566184
92433
Woodhead
$0.00
/ ea
- Amperage Rating: 18
- Material: Aluminum
- Color: Yellow
- Conductor size: 12
- Cord Length: 50
- Dimensions: 9.62 in W x 13.5 in D x 14.5 in H
- Grade: Industrial
- Reel Mounting Type: Rigid Base
- Series: 130083
- Voltage Rating: 600
Woodhead® POW-R-MITE® Cable Reel, Series: 130083, 600 VAC, 18 A, 50 ft Cord Length, 12 AWG Conductor, Rigid Base Reel Mounting, Industrial Grade, Aluminum, Yellow, 9.62 in W x 13.5 in D x 14.5 in H Dimensions
- Features
- NEMA 4 enclosure provides protection to water or dust, indoor and out
- Cable guide is adjustable every 5 deg over a 270 deg arc allowing for the exact configuration to suit the application
- Design prohibits annoying lock-out when cable is fully extended
- Containerized main spring allow for safe, simple handling and replacement
- Reels are constructed with spring tension to lift or stretch cable with no more than 10% sag
- 1 in NPT primary cable entry
- Cast aluminum with yellow powder coat finish construction
- Working end, flying leads and ball stop not included
- Easily disengaged as needed ratchet lock
- Easily adjusted tension
- Large, easy access spring junction box
- 12/3 SOW cable
