Woodhead 9242

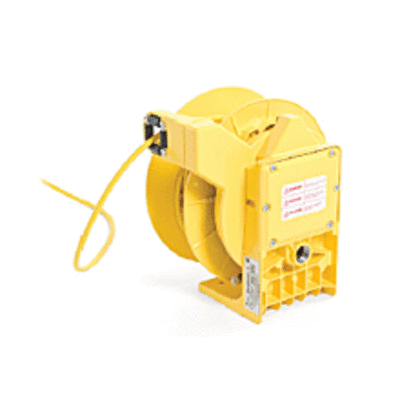

Woodhead reg; 9242 130084 Cable Reel, 600 VAC, 22 A, 20 ft L Cord, 10 AWG Conductor
Cord, Cable and Hose Reels
4295539 9242
Woodhead
$0.00 / ea

Woodhead 9242
  • Amperage Rating: 22
  • Material: Aluminum
  • Color: Yellow
  • Conductor size: 10
  • Cord Length: 20
  • Dimensions: 9.62 in W x 13.5 in D x 14.5 in H
  • Grade: Industrial
  • Reel Mounting Type: Rigid Base
  • Series: 130084
  • Voltage Rating: 600
Woodhead® Cable Reel, Series: 130084, 600 VAC, 22 A, 20 ft Cord Length, 10 AWG Conductor, Rigid Base Reel Mounting, Industrial Grade, Aluminum, Yellow, 9.62 in W x 13.5 in D x 14.5 in H Dimensions
QTY
Add to Wishlist
  • Features
  • NEMA 4 enclosure provides protection to water or dust, indoor and out
  • Cable guide is adjustable every 5 deg over a 270 deg arc allowing for the exact configuration to suit the application
  • Design prohibits annoying lock-out when cable is fully extended
  • Containerized main spring allow for safe, simple handling and replacement
  • Reels are constructed with spring tension to lift or stretch cable with no more than 10% sag
  • 1 in NPT primary cable entry
  • Cast aluminum with yellow powder coat finish construction
  • Working end, flying leads and ball stop not included
  • Easily disengaged as needed ratchet lock
  • Easily adjusted tension
  • Large, easy access spring junction box
  • 10/3 SOW cable
