Woodhead 9238

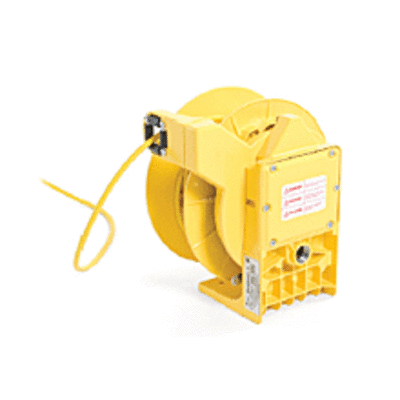

Woodhead POW-R-MITE 9238 130083 Cable Reel, 600 VAC, 7 A, 50 ft L Cord, 16 AWG Conductor
Cord, Cable and Hose Reels
7729354
9238
Woodhead
$0.00
/ ea
- Amperage Rating: 7
- Material: Aluminum
- Color: Yellow
- Conductor size: 16
- Cord Length: 50
- Dimensions: 9.62 in W x 13.5 in D x 14.5 in H
- Grade: Industrial
- Reel Mounting Type: Rigid Base
- Series: 130083
- Voltage Rating: 600
Woodhead POW-R-MITE Cable Reel, Series: 130083, 600 VAC, 7 A, 50 ft Cord Length, 16 AWG Conductor, Rigid Base Reel Mounting, Industrial Grade, Aluminum, Yellow, 9.62 in W x 13.5 in D x 14.5 in H Dimensions
- Features
- NEMA 4 enclosure provides protection to water or dust, indoor and out
- Cable guide is adjustable every 5 deg over a 270 deg arc allowing for the exact configuration to suit the application
- Design prohibits annoying lock-out when cable is fully extended
- Containerized main spring allow for safe, simple handling and replacement
- Reels are constructed with spring tension to lift or stretch cable with no more than 10% sag
- 1 in NPT primary cable entry
- Cast aluminum with yellow powder coat finish construction
- Working end, flying leads and ball stop not included
- Easily disengaged as needed ratchet lock
- Easily adjusted tension
- Large, easy access spring junction box
- 16/4 SOW cable
