Woodhead 9224

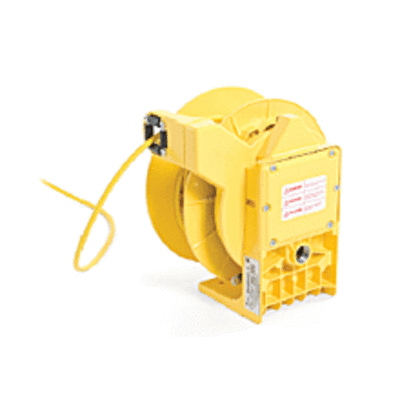

Woodhead POW-R-MITE 9224 130083 Cable Reel With Light, 600 VAC, 9 A, 30 ft L Cord, 16 AWG Conductor
Cord, Cable and Hose Reels
7558410 9224
Woodhead
$0.00 / ea

  • Amperage Rating: 9
  • Material: Aluminum
  • Color: Yellow
  • Conductor size: 16
  • Cord Length: 30
  • Dimensions: 9.62 in W x 13.5 in D x 14.5 in H
  • Grade: Industrial
  • Reel Mounting Type: Rigid Base
  • Series: 130083
  • Voltage Rating: 600
Woodhead POW-R-MITE Cable Reel, Series: 130083, 600 VAC, 9 A, 30 ft Cord Length, 16 AWG Conductor, Rigid Base Reel Mounting, Industrial Grade, Aluminum, Yellow, 9.62 in W x 13.5 in D x 14.5 in H Dimensions
  • Features
  • NEMA 4 enclosure provides protection to water or dust, indoor and out
  • Cable guide is adjustable every 5 deg over a 270 deg arc allowing for the exact configuration to suit the application
  • Design prohibits annoying lock-out when cable is fully extended
  • Containerized main spring allow for safe, simple handling and replacement
  • Handlamps have switch and convenience outlet on handle, spot light has switch and is wet location rated and low volt (12 VAC) for added safety
  • 1 in NPT primary cable entry
  • Cast aluminum with yellow powder coat finish construction
  • Working end includes a ball stop and light, bulb not included (except for low voltage spot lights, which include a bulb)
  • Easily disengaged as needed ratchet lock
  • Easily adjusted tension
  • Large, easy access spring junction box
  • Switch included on handle
  • 16/3 SOW cable
