Woodhead 5534M

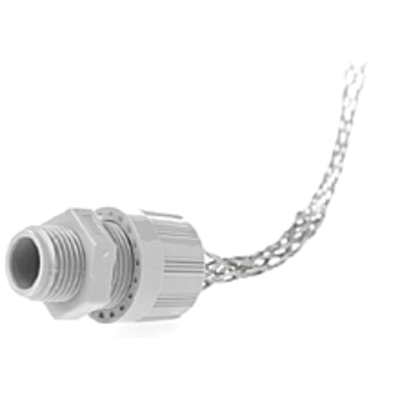

Woodhead reg; MAX-LOC reg; 5534M 130099 Straight Strain Relief Cord Sealing Grip With Stainless Steel Mesh, 1/2 in Trade, 0.562 to 0.625 in Cable Openings, Nylon
Cord Connectors and Grips
522624 5534M
Woodhead
$0.00 / ea

  • Cable Openings: 0.562 to 0.625
  • Material: Nylon
  • Color: Gray
  • Connection Type: MNPT
  • Series: 130099
  • Trade Size: 1/2
  • Type: Straight Strain Relief
Woodhead® MAX-LOC® Cord Sealing Grip, Straight Strain Relief, Series: 130099, 1/2 in Trade, Cable Openings: 0.562 to 0.625 in, MNPT Connection, Nylon, Gray
  • Features
  • Rugged construction suitable for boxes, cabinets, pushbutton and general use enclosures
  • Nylon body is resistant to impact and corrosion
  • Rubber grommet provides a liquidtight seal and reduces cord pullout
  • Grommets are color coded for easy identification
  • Rubber grommet is best material to resist chemicals and handles a wide temperature range
  • Available stainless steel mesh yields high strength, corrosion resistance and slight conductivity
  • 2-compression nut form size
  • Nylon gray cord grip body and compression nut, washer (white)
  • Rubber grommet, neoprene O-ring
  • Zinc plated steel nut
  • Half double weave, half single weave mesh Weave
  • Liquidtight cord seal
  • NEMA 6P when used with correct NPT-sized O-ring
  • Allows grips for any cord size for customer convenience
  • Ensures environmental compatibility
  • Provides customer product flexibility
  • One hole fitting
  • Use with 130099-0143 1/2 in NPT MAX-LOC® lock nut, MAX-LOC® O-ring, 130180-0314 1/2 in NPT, 130099-0149 1/2 in NPT MAX-LOC® gasket
  • Without o-ring and locknut
