Woodhead 5528W

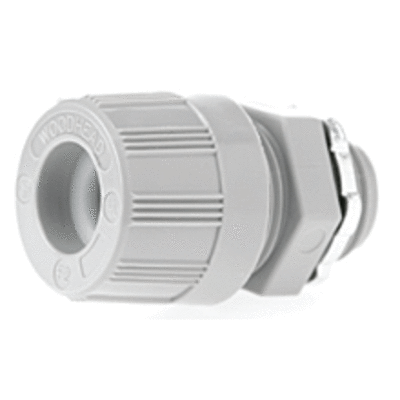

Woodhead reg; MAX-LOC reg; 5528W 130098 1-Hole Strain Relief Grip Cord Connector With O-Ring and Locknut, 1/2 in NPT Trade, 3/8 to 7/16 in Cable Openings, Nylon
Cord Connectors and Grips
234838 5528W
Woodhead
$0.00 / ea

  • Cable Openings: 3/8 to 7/16
  • Material: Nylon
  • Color: Green
  • Connection Type: Straight MNPT
  • Series: 130098
  • Trade Size: 1/2 in NPT
  • Type: 1-Hole Strain Relief Grip
Woodhead® MAX-LOC® Cord Connector, 1-Hole Strain Relief Grip, Series: 130098, 1/2 in NPT Trade, Cable Openings: 3/8 to 7/16 in, Straight MNPT Connection, Nylon, Green
  • Features
  • Rugged construction suitable for boxes, cabinets, pushbutton and general use enclosures
  • Nylon body is resistant to impact and corrosion
  • Rubber grommet provides a liquidtight seal and reduces cord pullout
  • Grommets are color coded for easy identification
  • Rubber grommet is best material to resist chemicals and handles a wide temperature range
  • Available stainless steel mesh yields high strength, corrosion resistance and slight conductivity
  • Available non-metallic mesh yields moderate strength, corrosion resistance, great flexibility and no conductivity
  • Gray cord grip body and compression nut, nylon washer
  • Rubber grommet
  • Neoprene O-ring
  • Zinc plated steel nut
  • Half double weave, half single weave mesh
  • NEMA 6P enclosure rating
