Woodhead 36257

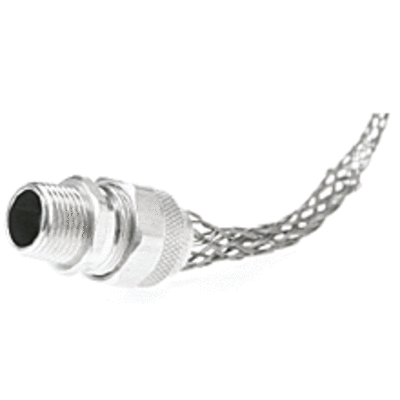

Woodhead reg; 36257 130097 Strain Relief Deluxe Cord Grip, 3/4 in Trade, Aluminum
Cord Connectors and Grips
236657
36257
Woodhead
$0.00
/ ea
- Material: Aluminum
- Mesh Length: 5-5/8
- Connection Type: Straight MNPT
- Series: 130097
- Trade Size: 3/4
- Type: Strain Relief
Woodhead® Deluxe Cord Grip, Strain Relief, Series: 130097, 3/4 in Trade, Straight MNPT Connection, 5-5/8 in Mesh Length, Aluminum
- Features
- Aluminum/stainless steel material construction performs well to resist corrosion
- 50% double weave construction improves cable protection and pull-out resistance
- Robust design good for indoor and outdoor use
- Stainless steel grip and mesh, aluminum threaded body, compression nut and mesh collar, rubber grommet, zinc-plated steel friction ring
- NEMA 4 enclosures with gasket placed between fitting and box
- Half double and half single weave mesh
- F2 form size
- 2.82 in bale length
- F2 size grip body
- For use with 130099-0144 MAX-LOC® 3/4 in NPT locknut 130099-0150 MAX-LOC® 3/4 in NPT gasket sealing ring, 130180-0333 MAX-LOC® 3/4 in NPT o-ring
- 1/4 to 3/8 in cable diameter
