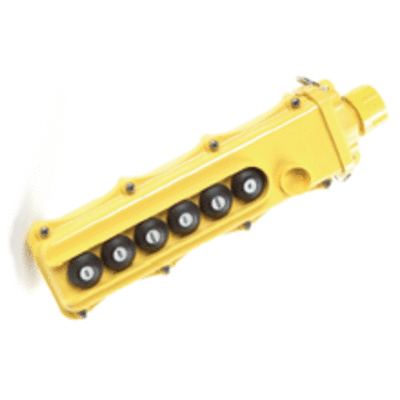

Woodhead 5052-N

Woodhead reg; Super-Safeway reg; Watertite reg; 5052-N 130126 Mechanically Interlocked Pendant Station, 250 VAC, NEMA 4X NEMA Rating
Pendant Pushbutton
614957 5052-N
Woodhead
$0.00 / ea

  • Material: Polycarbonate
  • Contact Form: 1NO
  • Nema Rating: NEMA 4X
  • Operating Temperature: -10 to 150
  • Operator Type: Maintained
  • Series: 130126
  • Type: Mechanically Interlocked
  • Voltage Rating: 250
Woodhead® Super-Safeway® Watertite® Pendant Station, Mechanically Interlocked, Series: 130126, 250 VAC, 1NO Contact Form, Maintained Operator, NEMA 4X Rating, -10 to 150 deg F Operating, Polycarbonate
  • Features
  • Lightweight, polycarbonate pendant enclosure is double insulated, UV stabilized and chemically resistant to provide long life
  • Ergonomic design fits easily in the palm of your hand for greater comfort and reduced fatigue
  • Single and two speed button pairs have mechanical interlocks for improved safety
  • The common circuit is pre-wired to save installation time
  • An elastic, chemically resistant gasket ensures a tight seal between front and back
  • MAX-LOC® strain relief included as standard to provide maximum cord pullout resistance
  • Stainless steel cover face screws
  • Rubber gasket and o-ring seal
  • MAX-LOC® nylon strain relief with rubber grommet cord
  • F3 3/4 in cord grip body
  • 3/8 to 13/16 in cable diameter
  • Two buttons
  • Single speed
  • Non metallic cord grip nut
  • Carton packaging
