Woodhead 4023

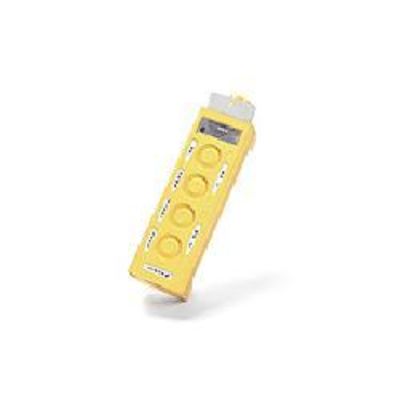

Woodhead reg; Super-Safeway reg; 4023 130126 Pendant Station, 250 VAC
Pendant Pushbutton
245372 4023
Woodhead
$0.00 / ea

  • Material: Rubber
  • Dimensions: 7.5 in L x 3 in W x 2.66 in D
  • Series: 130126
  • Voltage Rating: 250
Woodhead® Super-Safeway® Pendant Station, Series: 130126, 250 VAC, Rubber, 7.5 in L x 3 in W x 2.66 in D Dimensions
  • Features
  • Unique, industry-leading, NEoTEX® paracril OZO rubber pendant stations yield the best performance for abrasion, chemical exposure and temperature extremes
  • Ergonomic design fits easily in the palm of your hand for greater comfort and reduced fatigue
  • Housing to cover fitted with tongue and groove design for best sealing performance
  • Pushbuttons are not exposed beyond enclosure face to prevent unwanted activation and button protection
  • Single and two-speed buttons can be wired as an electrical interlock for improved safety
  • An elastic, chemically resistant gasket ensures a tight seal between front and back
  • MAX-LOC® strain relief included as standard to provide maximum cord pullout resistance
  • Built-in ground connection saves installation time
  • Steel zinc plated messenger cable bracket and cover screws
  • Neoprene gasket and o-ring seal
  • MAX-LOC® nylon strain relief with rubber grommet cord
  • All buttons are momentary, except for the E-Stop which is maintained
  • Single speed
  • Non-metallic cord grip nut
  • Three buttons
  • F3 body 3/4 in cord grip
  • 0.5 to 0.75 in cord diameter
  • Carton packaging
