Baldor GF4013AG

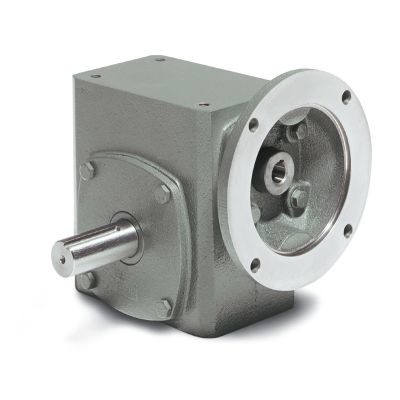

Baldor-Reliance GF4013AG 900 Continuous-Duty Type F Right Angle Worm Gear Speed Reducer, C-Face Quilled Input, Solid Shaft Output, 0.26 hp, 40:1 Gear Ratio, 44 rpm Maximum Output, 230 in-lb Torque Rating
Non-Helical Worm Right Angle Drives
7312451
GF4013AG
Baldor
$0.00
/ ea
- Centre Distance: 1.33
- Dimensions: 6.09 in L x 6.3 in H
- Finish: Standard
- Gear Ratio: 40:1
- Horsepower: 0.26
- Input Maximum Speed: 1750
- Input Size: 5/8
- Input Type: C-Face Quilled
- Keyway Size: 0.187 x 0.093
- Lubrication Type: Synthetic Oil
- Material: Cast Iron
- Mounting Type: 56C
- Output Maximum Speed: 44
- Output Size: 5/8
- Output Type: Solid Shaft
- Rotation Type: Left Hand
- Series: 900
- Torque Rating: 230
- Type: Continuous-Duty Type F
Baldor-Reliance Right Angle Worm Gear Speed Reducer, Continuous-Duty Type F, Series: 900, 40:1 Gear Ratio, 0.26 hp, C-Face Quilled Input, Solid Shaft Output, 5/8 in Input, 5/8 in Output, 44 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 230 in-lb, 1.33 in Centre Distance, 0.187 x 0.093 in Keyway, Left Hand, Synthetic Oil Lubrication, 56C Mount, Cast Iron, Standard, 6.09 in L x 6.3 in H
- Features
- Chill cast precision hobbed tin bronze gear provides superior wear characteristics
- Carburized and ground worm provides optimum efficiency and cool quiet operation
- Plunge ground seal journals for optimum seal life
- Completely sealed and lubricated for life with USDA H1 food grade synthetic oil which ensures years of trouble-free operation
