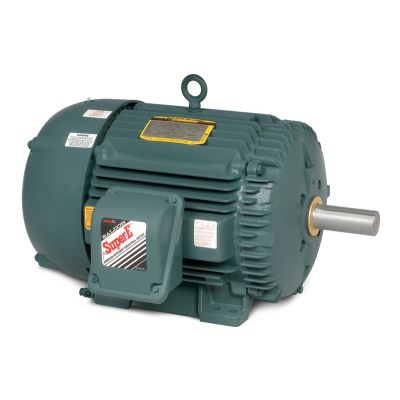

Baldor ECP84103T-4
Baldor-Reliance Super-E ECP84103T-4 AC Motor, IP56 TEFC Enclosure, 25 hp, 460 VAC, 60 Hz, 284T Frame, 1770 rpm Speed, F1 Foot Mount
AC Motors
6781070
ECP84103T-4
Baldor
$0.00
/ ea
- Amperage Rating: 30
- Bearing Type: Ball
- Constant Torque Speed Range: 1
- Dimensions: 27.93 in L
- Enclosure Type: IP56 TEFC
- Frame: 284T
- Frequency Rating: 60
- Horsepower: 25
- Insulation Class: Class F
- Material: Cast Iron
- Mounting Type: F1 Foot
- Number Of Speeds: 1
- Rotation: Reversible
- Service Factor: 1.15
- Shaft Size: 1-7/8
- Special Features: Continuous Duty Motor, Severe Duty Motor
- Speed: 1770
- Temperature Rating: 40
- Torque Rating: 74.31
- Voltage Rating: 460
Baldor-Reliance Super-E AC Motor, Continuous Duty Motor, Severe Duty Motor Special Features, 25 hp, 460 VAC, 30 A, 60 Hz Frequency, 1770 rpm Speed, 1 Speed, IP56 TEFC Enclosure, 284T Frame, 1-7/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 74.31 ft-lb Torque, F1 Foot Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 1 Constant Torque Speed, 27.93 in L Dimensions
- Features
- Totally enclosed cast iron construction
- Lower vibration design
- Inpro seals and positive lubrication system with oversize bearings on both ends
- Stainless steel nameplates
- Terminal lugs on motor leads
- Corrosion-resistant epoxy finish
- NEMA Premium® efficiency
- Class F insulation with a class B temperature rise
- Final test and vibration results provided with motor
- Designed to meet 200 deg C at 1 service factor
- Inverter ready design with speed range
- Without drip cover
- Without auxiliary box
