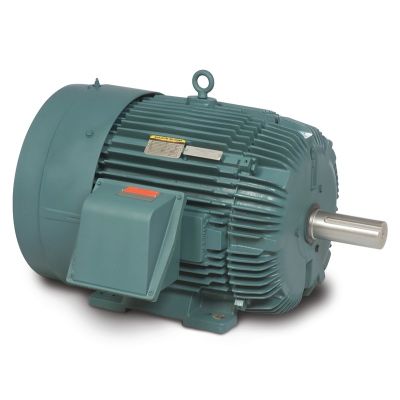

Baldor ECP4314T
Baldor-Reliance ECP4314T Continuous Duty Type A36062M AC Motor, Totally Enclosed Fan Cooled Enclosure, 60 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 364T Frame, 1780 rpm Speed, Rigid Mount
AC Motors
6966108
ECP4314T
Baldor
$0.00
/ ea
- Amperage Rating: 136/68
- Application Type: General Purpose AC Motors
- Bearing Type: Ball
- Constant Torque Speed Range: 10:1 to 60:1
- Dimensions: 33.49 in L x 19.12 in H
- Enclosure Type: Totally Enclosed Fan Cooled
- Frame: 364T
- Frequency Rating: 60
- Horsepower: 60
- Insulation Class: Class F
- Material: Iron
- Mounting Type: Rigid
- Number Of Speeds: 1
- Phase: 3
- Rotation: Reversible
- Service Factor: 1.15
- Shaft Size: 2.374
- Special Features: Severe Duty Motors
- Speed: 1780
- Temperature Rating: 40
- Type: Continuous Duty Type A36062M
- Voltage Rating: 230/460
Baldor-Reliance AC Motor, Continuous Duty Type A36062M, General Purpose AC Motors Application, Severe Duty Motors Special Features, 60 hp, 230/460 VAC, 136/68 A, 60 Hz Frequency, 3 ph ph, 1780 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 364T Frame, 2.374 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, Rigid Mounting, 40 deg C, Insulation Class: Class F, Iron, 10:1 to 60:1 Constant Torque Speed, 33.49 in L x 19.12 in H Dimensions
- Features
- Robust cast iron construction
- Regreasable bearings all frames
- Embossed raised letter, 304 stainless steel nameplates
- Inverter ready nameplate
