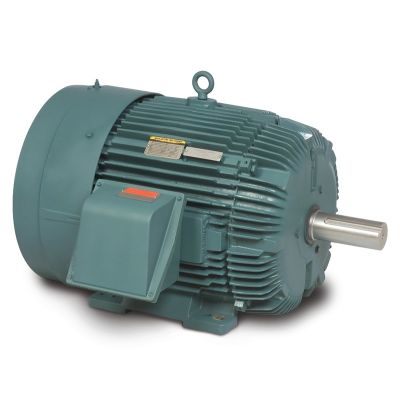

Baldor ECP4310T-4
Baldor-Reliance Super-E ECP4310T-4 AC Motor, IP55 TEFC Enclosure, 60 hp, 460 VAC, 60 Hz, 3 Phase, 364TS Frame, 3560 rpm Speed, Footed Mount
AC Motors
6780857
ECP4310T-4
Baldor
$0.00
/ ea
- Amperage Rating: 65.1
- Bearing Type: Ball
- Constant Torque Speed Range: 6 to 60
- Dimensions: 31.37 in L
- Enclosure Type: IP55 TEFC
- Frame: 364TS
- Frequency Rating: 60
- Horsepower: 60
- Insulation Class: Class F
- Material: Cast Iron
- Mounting Type: Footed
- Number Of Speeds: 1
- Phase: 3
- Rotation: Reversible
- Service Factor: 1.15
- Shaft Size: 1-7/8
- Special Features: Continuous Duty Motor, Severe Duty Motor
- Speed: 3560
- Temperature Rating: 40
- Variable Torque Speed Range: 88.5
- Voltage Rating: 460
Baldor-Reliance Super-E AC Motor, Continuous Duty Motor, Severe Duty Motor Special Features, 60 hp, 460 VAC, 65.1 A, 60 Hz Frequency, 3 ph, 3560 rpm Speed, 1 Speed, IP55 TEFC Enclosure, 364TS Frame, 1-7/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, Footed Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 6 to 60 Constant Torque Speed, 88.5 ft-lb Variable Torque Speed, 31.37 in L Dimensions
- Features
- Totally enclosed cast iron construction
- Premium insulation system
- Sealed frame fits
- Gasketed conduit box
- V-ring shaft slinger
- Stainless steel nameplates
- Corrosion-resistant epoxy finish and corrosion-resistant hardware
- Super-E® severe duty motors have NEMA Premium® efficiency
- Positive lubrication system (PLS) on 250 frames and larger
- Inverter ready design with speed range
- Without drip cover
- 88.5 ft-lb at 3559 rpm torque rating
- Without auxiliary box
