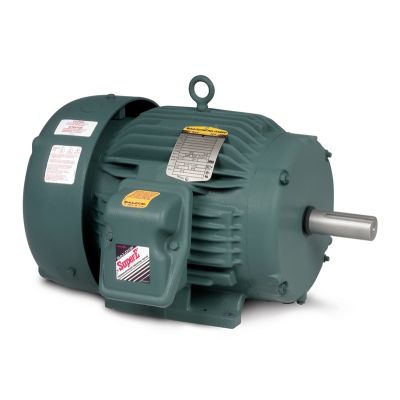

Baldor ECP4109T-4
Baldor-Reliance Super-E ECP4109T-4 AC Motor, TEFC/IP55 Enclosure, 40 hp, 460 VAC, 60 Hz, 324TS Frame, 3540 rpm Speed, F1 Foot Mount
AC Motors
283603
ECP4109T-4
Baldor
$0.00
/ ea
- Amperage Rating: 46
- Bearing Type: Ball
- Constant Torque Speed Range: 6
- Dimensions: 29.15 in L
- Enclosure Type: IP55 TEFC
- Frame: 324TS
- Frequency Rating: 60
- Horsepower: 40
- Insulation Class: Class F
- Material: Cast Iron
- Mounting Type: F1 Foot
- Number Of Speeds: 1
- Rotation: Reversible
- Service Factor: 1.15
- Shaft Size: 1-7/8
- Special Features: Continuous Duty Motor, Severe Duty Motor
- Speed: 3540
- Temperature Rating: 40
- Torque Rating: 59.3
- Voltage Rating: 460
Baldor-Reliance Super-E AC Motor, Continuous Duty Motor, Severe Duty Motor Special Features, 40 hp, 460 VAC, 46 A, 60 Hz Frequency, 3540 rpm Speed, 1 Speed, IP55 TEFC Enclosure, 324TS Frame, 1-7/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 59.3 ft-lb Torque, F1 Foot Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 6 Constant Torque Speed, 29.15 in L Dimensions
- Features
- Totally enclosed cast iron construction
- Premium insulation system
- Sealed frame fits
- Gasketed conduit box
- V-ring shaft slinger
- Stainless steel nameplates
- Corrosion-resistant epoxy finish and corrosion-resistant hardware
- Super-E® severe duty motors have NEMA Premium® efficiency
- Positive lubrication system (PLS) on 250 frames and larger
- Inverter ready design with speed range
- Without drip cover
- Without auxiliary box
