Baldor 124455

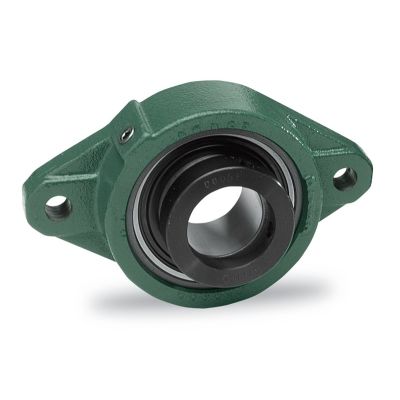

Dodge 124455 209 Normal Duty Non-Expansion Ball Bearing Unit With Flingers, 1-3/4 in Dia Bore, 5.84 in L Bolt Center-to-Center, 2-Bolt Base Flange Mount, 7.06 in OAL/Dia
Flange Mount Ball Bearing Units
7415944 124455
Baldor
$0.00 / ea

Baldor 124455
  • Bearing Material: Steel
  • Bolt Center-to-Center Length: 5.84
  • Bore Diameter: 1-3/4
  • Finish: Powder Coated
  • Flange Mounting Type: 2-Bolt Base
  • Load Capacity: 7891 lb Dynamic/4906 lb Static
  • Locking Device: 65 deg Set Screw
  • Maximum Speed: 5000
  • Overall Depth: 1.99
  • Overall Height: 4.38
  • Overall Length/Diameter: 7.06
  • Seal Material: Nitrile Rubber
  • Series: 209
  • Type: Normal Duty Non-Expansion
Dodge Ball Bearing Unit, Normal Duty Non-Expansion, Series: 209, 1-3/4 in Bore, 5.84 in Bolt Center-to-Center Length, 2-Bolt Base Flange Mounting, 7.06 in Overall Length/Diameter, 1.99 in Overall Depth, 4.38 in Overall Height, 65 deg Set Screw Locking Device, Steel Bearing, Nitrile Rubber Seal, 7891 lb Dynamic/4906 lb Static Load, 5000 rpm Maximum, Powder Coated
QTY
Add to Wishlist
  • Features
  • DualGuard™ seal with rubberized flinger is standard
  • Precision hardened and honed-series 200 mounted ball bearings in globally interchangeable, ISO dimensions
  • Unique 65 deg setscrew angle and premium cup point set screws optimize shaft holding power without excessive inner ring distortion
  • Wide inner ring design
  • Stronger and flexible ball cage
  • Simplified anti-rotation device
